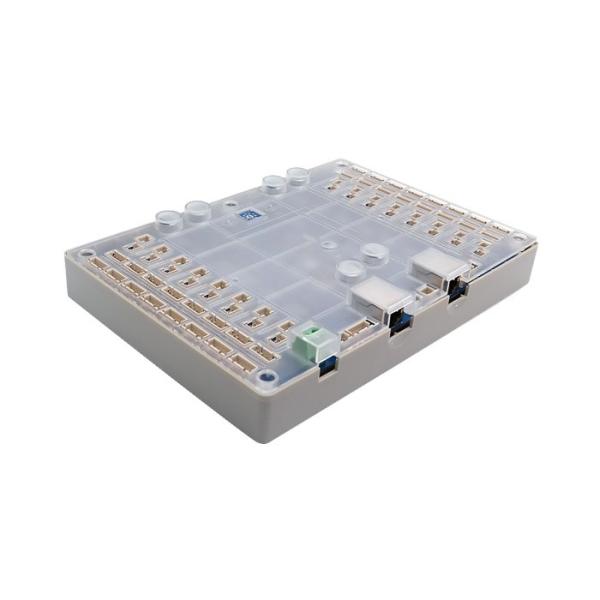

12V~24V Electronic Locking System PCB Lock Control Panel
Product parameters
| Model | KR- CU |
| Brand | KERONG |
| Definition | Electronic rotary latch controller |
| Function | Receive commands to control lock and feedback status |
| Dimension | L200*W140*H15mm |
| Material | PCB (Printed Circuit Board) |
| The dimension of protecting the shell | L210*W150*H35mm |
| Microprocessor module | STM8S103K3T6 QFP32(P0.8mmBS7*7mm) |
| Connector model | RJ45, 8P8C |
| Working voltage | 12V~24V |
| Stand-by power consumption | 60mA |
| Dynamic power consumption | 200mA~3000mA |
| Reaction time | Less than 1s |
| Working temperature | -25℃ ~ +65℃ |
| Working humidity | 5% ~ 95%RH |
| Certification | CE; ISO9001; RoHS |
| OEM | Accepted |
Product Main Features
1. Adopted the code design with high learning security
2. High relevance of software start/stop and route setting
3. For network communication. Transfer TCP/IP commands (from PC) to 485 formats (to CU)
4. Open developed, you can design software completely as you want
5. Can co-work with a computer, pad, Raspberry Pi
6. Works well on IOS, Windows, and Linux
7. Flashlight available,Electric lock available
8. High-quality modules, working stably
9. With protecting the box, anti-dust
Product Details
1, Connects directly to the lock to provide power to the lock and feedback on the status of the lock. (open or closed)
2, Infrared wire and LED light can be connected to check if the locker is empty and the LED light can illuminate the locker when it is unlocked.
3, Connect the infrared feedback light (two colors), the light can be extended to each locker. When the locker is empty, the light turns green; when the locker is occupied, the light turns red.
4, Connect lock feedback light; the light can be extended to every single lock to indicate whether the lock is closed or not. When the lock is on, the light is on; when the lock is closed, the light is off.
How it works
Application on centrally controlled intelligent cabinets, selectable according to different locks and number of cabinet doors.
